Complete Assembly

Here is an example of a Pioneer Box case

Attach the Pioneer Board to the chassis​

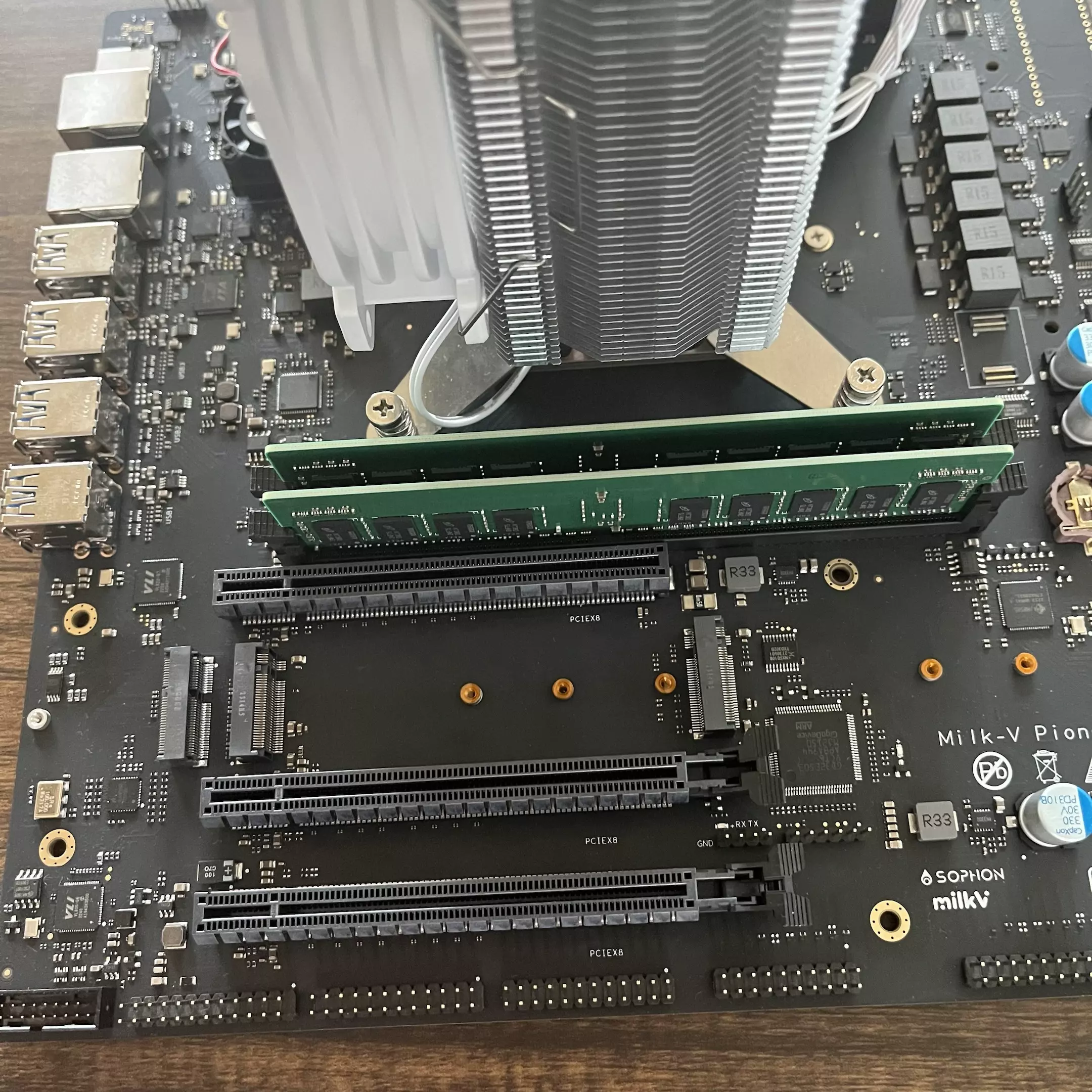

Step1 Installing the heatsink and memory stick​

Install the heatsink and memory stick on the Pioneer. step1

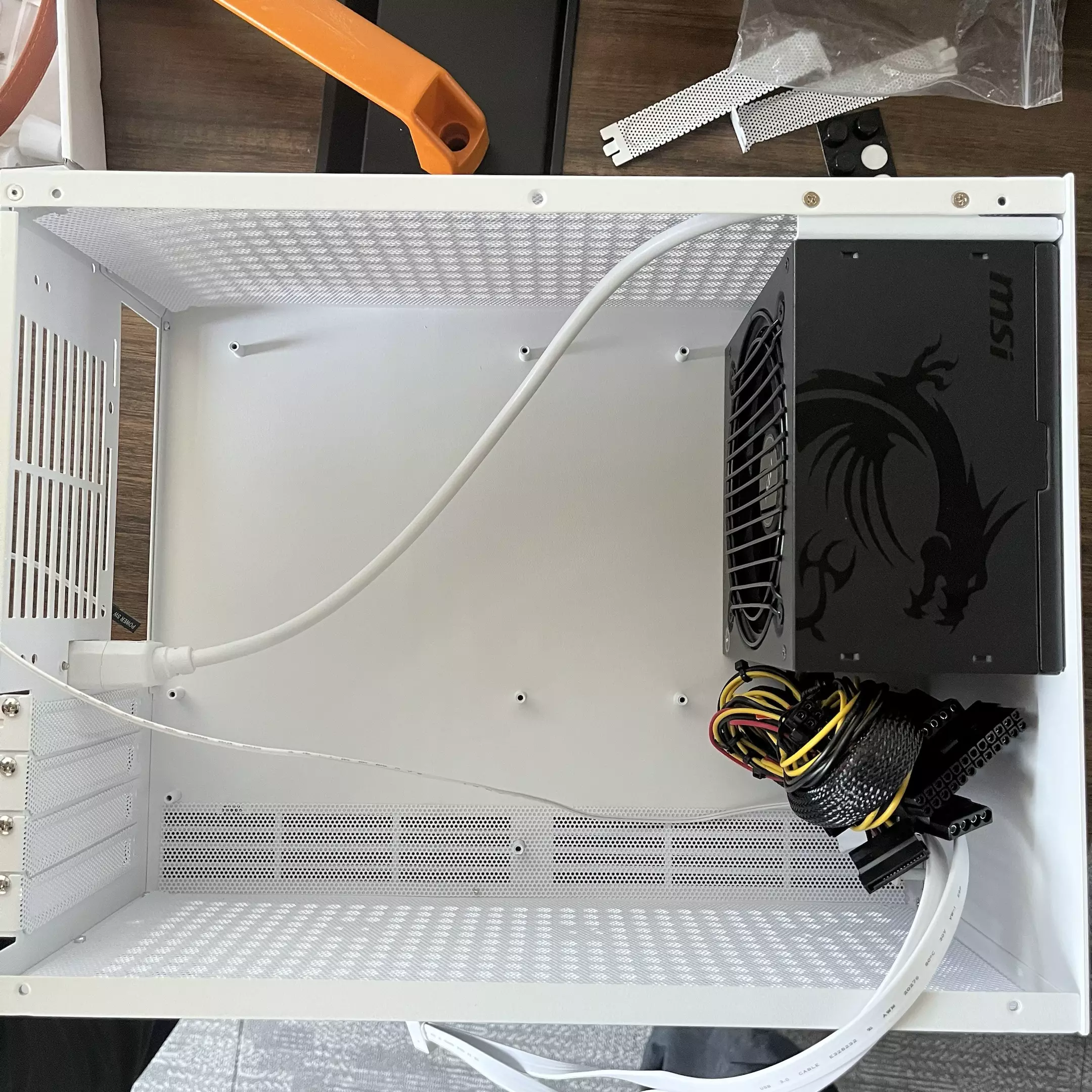

Step2 Installing the power supply​

Install the power supply on the chassis. step2

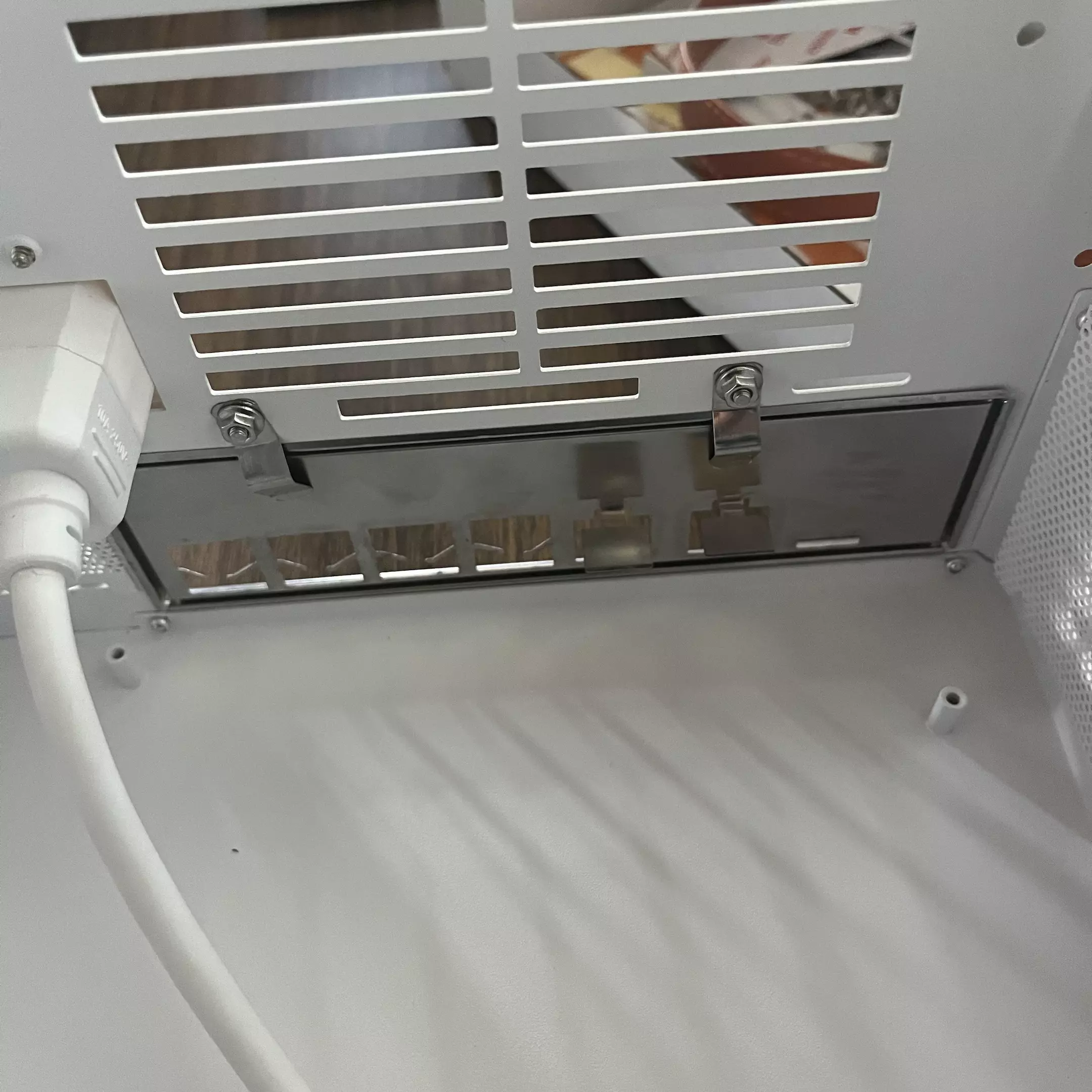

Step3 Install the interface baffle​

Attach the interface baffle to the back of the chassis. step3

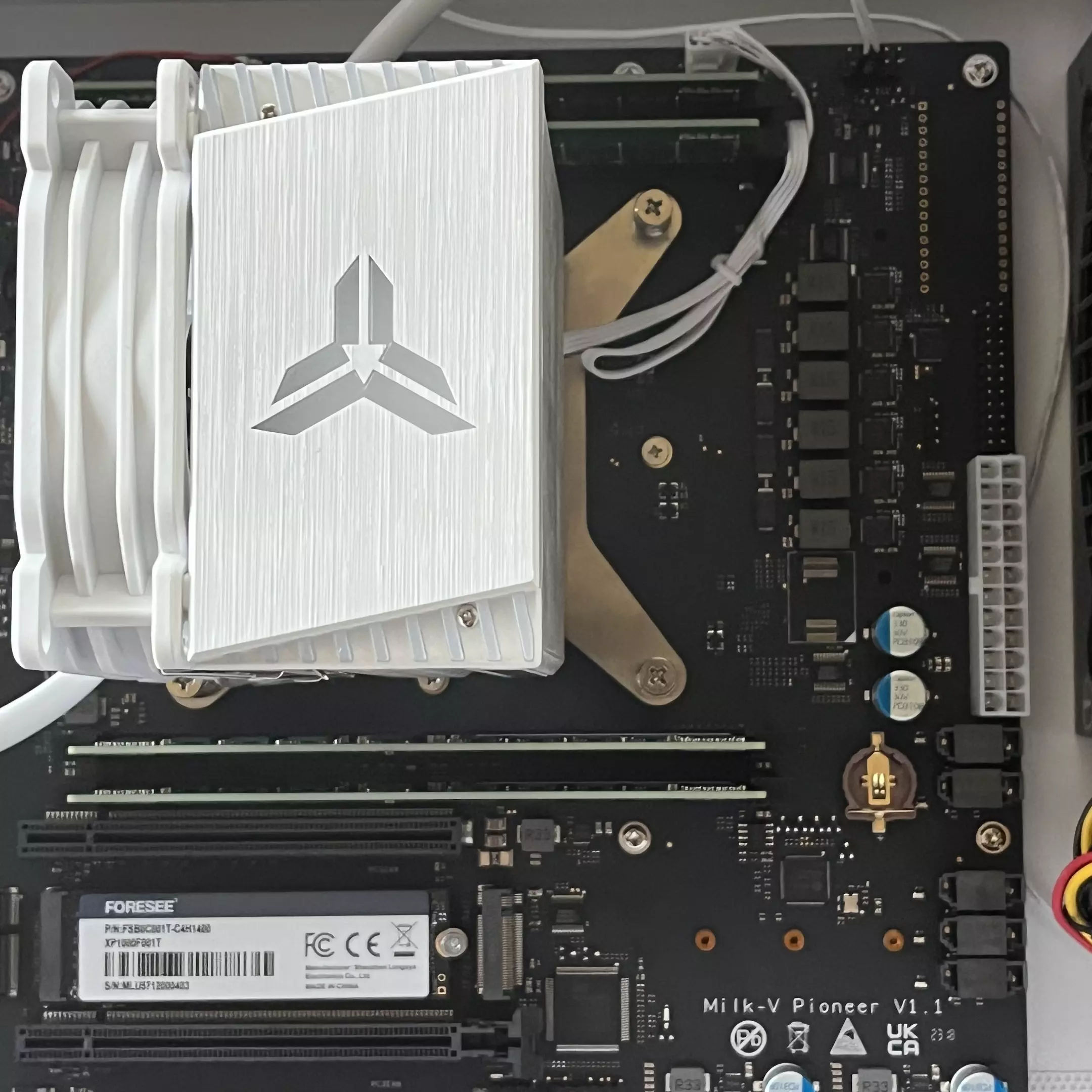

Step4 Secure the Pioneer Board to the chassis with screws​

Secure the Pioneer Board to the chassis with screws. You can use the screws that came with the case. step4

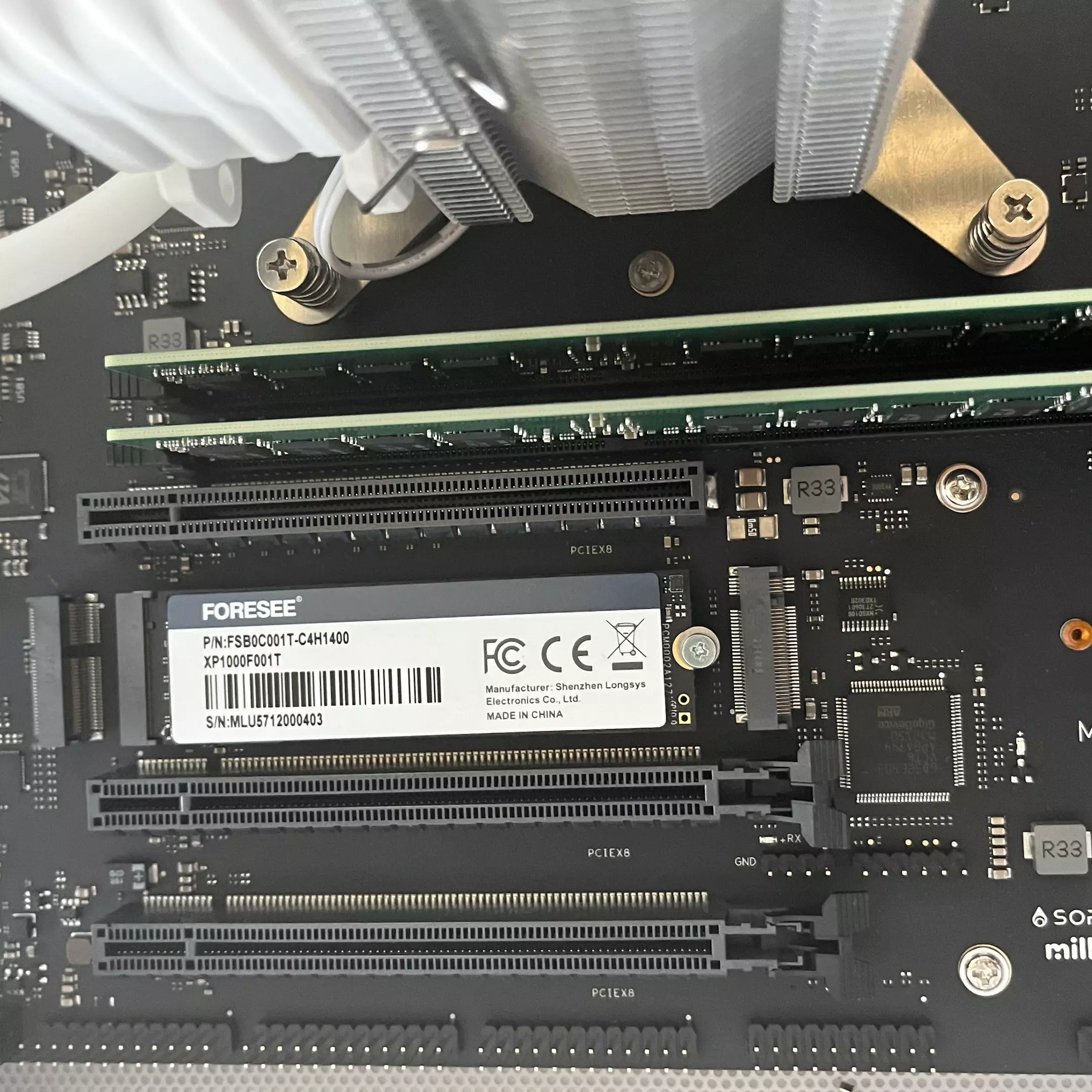

Step5 Installing the SSD​

step5

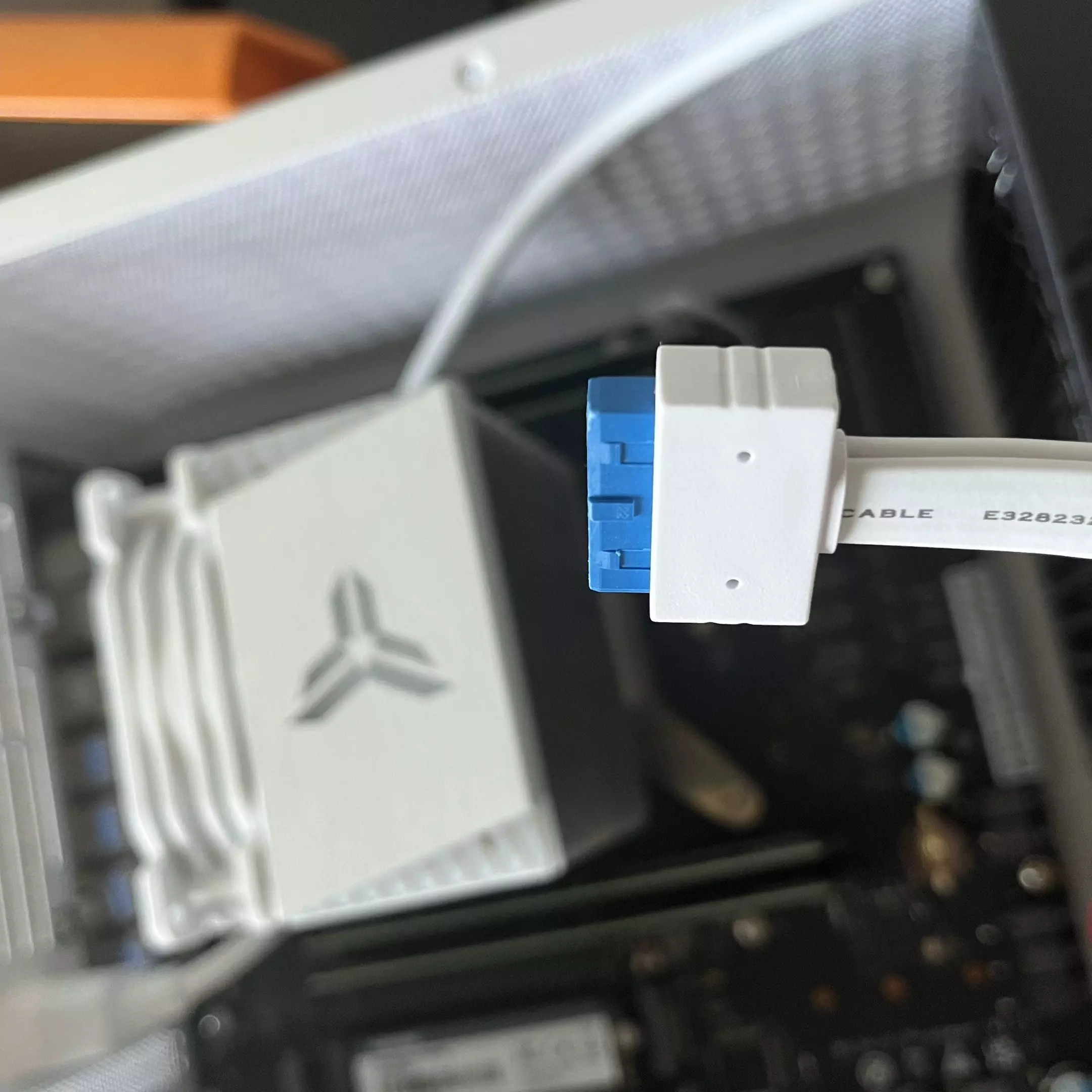

Step6 Connecting the front panel USB​

Connect the Pioneer Board via the USB cable that came with the case. the plug has an anti-misplug design, which is a standard interface. step6-1 step6-2

Step7 Connect the switch key​

Connect the Pioneer Board via the switch key connection cable that comes with the chassis.
