Introduction​

Milk-V Pioneer is a developer motherboard based on SOPHON SG2042 in a standard mATX form factor. With PC-like interfaces and PC industrial compability, Pioneer provides native RISC-V development environment and RISC-V desktop experience. It is the first choice for RISC-V developers and hardware pioneers to experience the cutting edge technology of RISC-V. Embrace RISC-V, embrace the future.

Feature​

Hardware​

Pioneer Board​

  • SOPHGO SG2042 Chip
  • 64 Core RISC-V CPU up to 2Ghz

Interface​

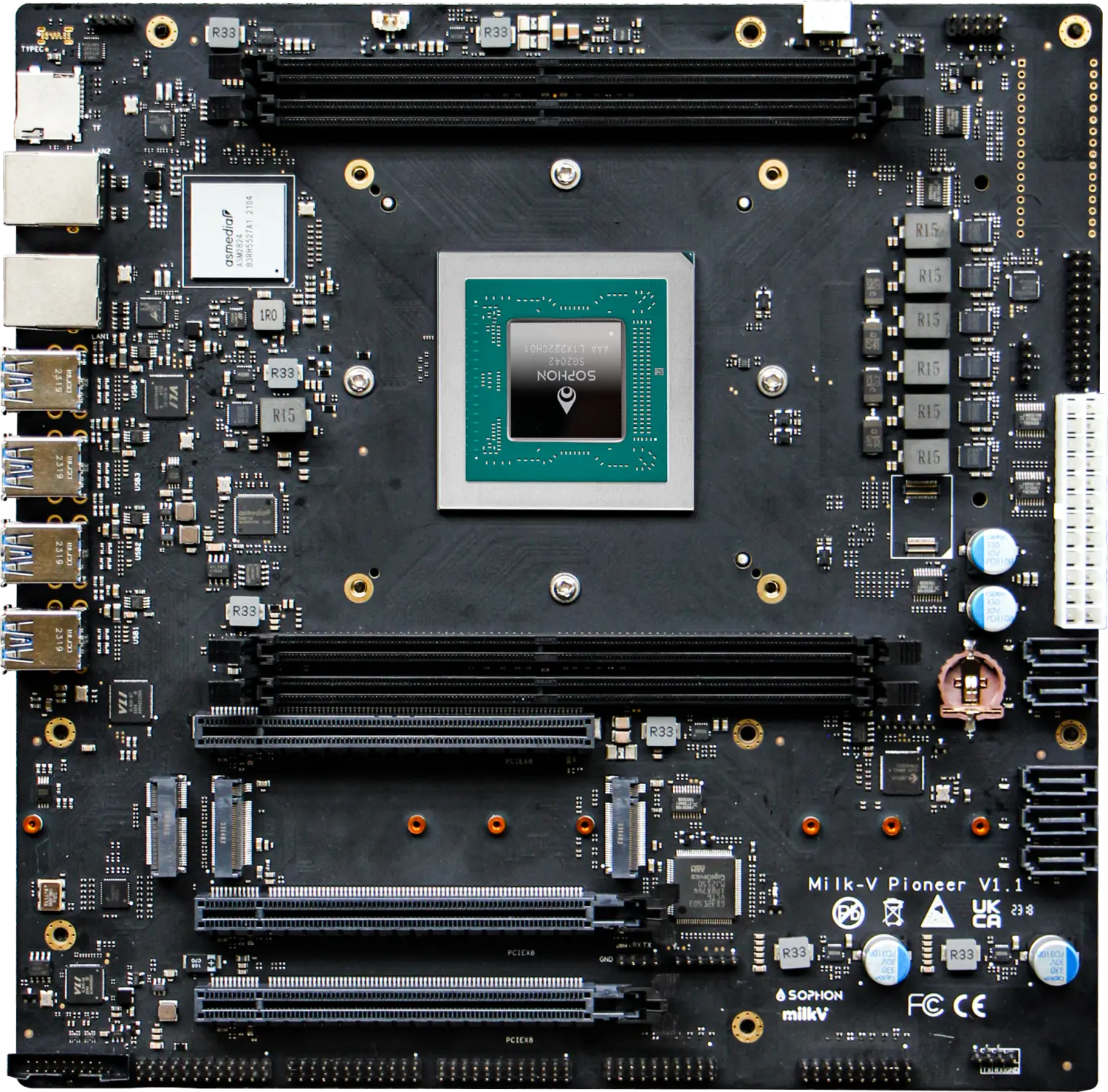

Pioneer Board​

Pioneer Board

  • Processor: SOPHON SG2042 (64 core C920, RVV 0.71)
  • Memory: 4x DDR4 DIMM slots up to 128 GB RAM support
  • PCI Express: 3x PCIe x16 Slot (PCIe 3.0 x8)
  • Storage: 5x SATA
  • Size: 24.4 x 24.4 cm
  • Power: 1x standard 24 P ATX power connector
  • Ethernet: 2x RJ45 2.5 G
  • Wireless: 1x M.2 E KEY (PCIe 3.0 x1 + USB 2.0)
  • USB:
    • 8x USB3
    • 1x USB header for front panel (2x USB 3.0)
  • Other:
    • 1x misc header for front panel power, reset, LED, etc.
    • 1x SPI Flash for BIOS
    • 1x MicroSD card for recovery or OS loading
    • 2x M.2 M-key 2280(PCIe 3.0 x4)
    • 1x eMMC module connector

Pioneer Box​

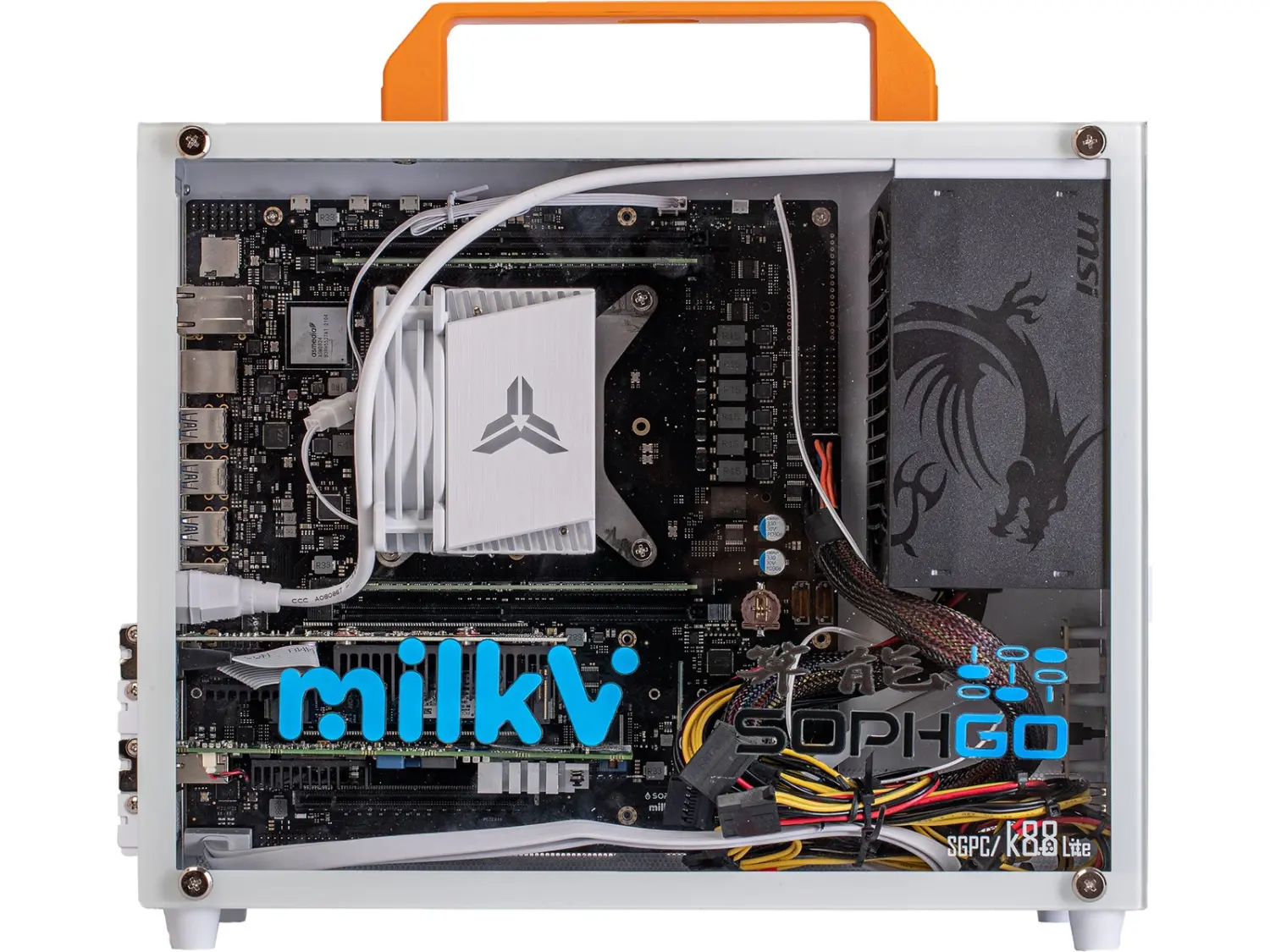

Pioneer Box Pioneer Box is a complete ready-to-use RISC-V PC with the following:

  • 1x Pioneer Board
  • 64GB 3200 DDR4
  • 1x 1TB PCIe 3.0 SSD
  • 1x Intel X520-T2 Network Card with 2x 10Gbps RJ45 ports
  • 1x AMD R5 230 Graphic Card with HDMI, VGA and DVI
  • 1x MSI A350 350W Power Apply
  • 1x Cooler with PWM Fan up to 2300 RPM supporting up to 160W D-TDP
  • White slim PC enclosure with handle

Support​

For support please see the documentation section of the Milk-V website and post questions to the Milk-V Community.
